Top 10 Aluminum Small Block Chevy Head Parts: Studs, Bolts, Gaskets, And Upgrades 2026

⚡ Quick Verdict

📋 How We Evaluated

Evaluation focused on build quality, material choices, and mechanical suitability for Chevy V8 applications. Performance emphasis targeted airflow-capable parts and hardware that maintains clamping force. Value considered how clearly each listing states fitment, included components, and whether Amazon-style rating signals appear, noting most items lack rating data.

Engine Compatibility	Chevy small block 283, 302, 305, 327, 350, 383, 400 (up to 1986)
Plug Style	Angle spark plug
Combustion Chamber Volume	64cc
Intake Runner Volume	205cc

What We Found

IMOOA lists a pair of bare angle plug aluminum cylinder heads for Chevy small block applications covering 283 through 400 (up to 1986 per the listing). It also calls out a 64cc combustion chamber and 205cc intake runner volume, plus 2.020-inch intake valves and 1.600-inch exhaust valves.

The build uses bronze valve guides and ductile iron valve seats, which is the kind of pairing you’d expect when the goal is durability and wear resistance.

Because these are bare heads, the focus is on the casting and valvetrain hardware setup area – you’re still responsible for matching springs, locks, and any machine work to your cam and compression plan.

The angle plug design also points you toward the traditional small block ignition/spark plug layout rather than later direct-fit styles. Aluminum construction is a plus if you’re trying to trim weight versus cast iron.

Who It’s For

I’d point these toward hobbyists and engine builders who want a lightweight aluminum head base for a classic small block Chevy and plan to finish the valvetrain appropriately. The 64cc chamber and the listed runner volume give you a clear starting point when you’re planning compression and airflow.

They’re a better match when you expect machining/assembly work rather than wanting a completely finished, drop-in head with everything ready to go.

Application	Chevy big block 396-454
Stud Spacing	Factory standard stud spacing
Rocker Stud Size	7/16 in. rocker studs
Finish	Clear anodized

What We Found

JEGS offers a stud girdle accessory for Chevy big block 396 through 454 applications that use factory stud spacing. The listing highlights a clear anodized finish, which helps with corrosion resistance and also makes the piece easier to clean during maintenance.

It’s targeted for 7/16-inch rocker studs and is meant to stay aligned with the factory spacing patterns. The main purpose here is stability – supporting consistent clamping behavior at the stud area and helping rocker geometry stay controlled when you’re running stronger valvetrain setups or sustained rpm.

The excerpt shown also suggests a billet-style build, but the exact material/grade details aren’t fully spelled out here. As with any girdle, it’s not a cylinder head replacement – it’s an add-on that works only if your rocker hardware, torque procedure, and stud spacing are correct.

Who It’s For

I’d shortlist this for big block builders who are already upgrading the valvetrain and want extra help keeping the rocker area stable. It can fit better when you’re sticking to factory standard stud spacing and using 7/16-inch rocker studs.

It’s less appealing for anyone looking for a stock-style rebuild that’s trying to keep complexity and cost down.

Pieces Included	34
Grade Rating	Grade 8
Thread Prep	Sealant coated threads
Head Material Fit	For cast iron heads where washers are not required

What We Found

Speedway Motors lists a 34-piece small block Chevy cylinder head bolt set as Grade 8, OEM-quality hardware. The listing calls out strength/proof-load figures, including a 120,000 PSI proof load and 150,000 PSI tensile strength. It also mentions sealant-coated threads, which can make assembly smoother and help manage thread-related leak paths.

The 5/8-inch hex head format is shop-friendly, especially if you’re repeatedly doing head work. This set is positioned as reliability-focused preventative maintenance – replacing stretched or fatigued head bolts helps avoid unexpected downtime tied to clamping issues.

Based on the excerpt, it’s also meant to be ready to assemble (so you’re not guessing about missing sealant steps).

Who It’s For

I’d recommend this for restorers and shop builds that want consistent clamping force and a straightforward bolt install, particularly for small block Chevy V8 setups using cast iron heads where washers aren’t required (as implied by the listing intent).

It also makes sense for refresh cycles where head bolts are treated as a maintenance item. If your application depends on a different setup (head material assumptions or washer-required designs), you’ll want to double-check compatibility before committing.

Compatibility	Big Block Chevy ’66-’00
Drive Style	12-point head
Material	Chromoly
Finish	Black oxide

What We Found

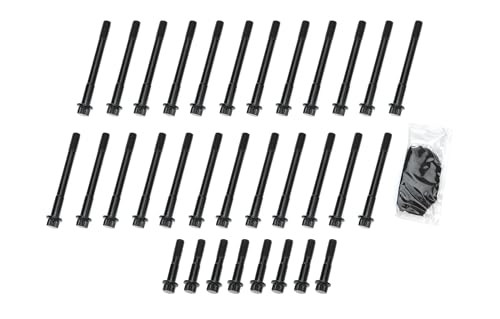

The Head Bolt Kit is described with a 12-point head design, chromoly construction, and a black oxide finish. The listing frames it as a direct OE replacement for big block Chevy applications from ’66-’00, so it’s primarily about restoring correct look and function rather than chasing performance changes.

It also uses “quality tested” language and notes easy fitment with no modifications. The 12-point head design is a practical detail – better tool engagement and torque control compared to rounded-head styles, especially if you’ll be servicing the engine more than once.

Overall, it reads like a restoration and dependable clamping-focused hardware kit.

Who It’s For

I’d consider this for classic big block restorations or maintained builds where you care about factory-correct hardware behavior and a clean, service-friendly setup. The ’66-’00 compatibility window should cover a lot of late-60s through later big block applications, but it still depends on your exact year and configuration.

Chromoly with black oxide is also a good fit if you’re aiming for long service life in a heat-and-exposure environment. It’s not the pick I’d make for an out-of-range year, or for small block builds outside the stated application.

Type	Dual plane air-gap intake manifold
Material	Aluminum with satin finish
Intake Target RPM Range	1,500-6,500 RPM
Fitment	Direct replacement for SBC 1955-86 listed models

What We Found

OXYSTAR lists an aluminum dual-plane air-gap intake manifold aimed at small block Chevy engines across 1955-86 models, with part number variants like 2026 and 7501 (as shown in the listing). It calls out wide SBC compatibility – 262, 265, 267, 283, 302, 305, 307, 327, 350, and 400.

The performance claim is tied to an RPM range of 1,500 to 6,500, which fits typical street builds that move between low-mid torque use and moderate cam upgrades. Design-wise, it emphasizes precision-cast runners and an optimized plenum to improve intake efficiency and throttle response.

The “air-gap” style is meant to reduce heat soak, supporting more stable intake charge temperatures. The listing also says it’s a direct replacement that matches original cylinder head port configurations for sealing. A satin finish is mentioned for corrosion resistance and consistent appearance.

Who It’s For

I’d shortlist this for small block owners who want a performance-oriented intake swap without cutting, rerouting, or changing the entire intake layout. Dual-plane is typically where you get midrange torque back while still supporting higher-rpm breathing.

It also fits people who want a more “factory-like” intake footprint but with improved airflow characteristics. Carbureted builds should benefit most from the listed SBC compatibility, while highly specialized high-RPM setups that need a single-plane strategy might not be the best match.

Application	SBC 305/327/350 5.0L/5.7L long water pump carb V-belt
Alternator Bolt Pattern	12SI style, 6.56 in center-to-center
Mount Style	Low mount adjustable double hump heads bracket
Warranty/Returns	30-day return, 12-month warranty

What We Found

LWP describes a low mount alternator bracket kit as adjustable billet for small block Chevy long water pump, V-belt applications. The listing targets 305, 327, and 350 engines including 5.0L and 5.7L variants. Fitment is built around alternators that use 6.56-inch center-to-center bolt holes in a 12SI-style pattern.

The bracket includes a slotted tension design, which is meant to help keep belt tension tight under load and make adjustments easier over time. Material claims include durable steel and aluminum with an anti-corrosion intent and strength for vibration resistance.

The listing excerpt indicates a double hump heads alternator bracket kit plus the bolts and hardware shown in the images. It also includes a 30-day return window and a 12-month warranty, which is a nice confidence booster for an accessory that’s critical to charging reliability.

This one is about charging system fitment and belt alignment – not cylinder head performance.

Who It’s For

I’d recommend this for SBC restorations and swaps where alternator positioning affects belt alignment and how easily you can dial in tension. It’s aimed at long water pump setups with carburetor V-belt configurations, and the slotted tension design helps when the belt wears or when you switch alternators.

If you’re matching a 12SI-style alternator pattern, the 6.56-inch spacing detail is especially important. If you’re running a serpentine conversion or a short water pump arrangement, I’d expect fitment differences – so this may not be the cleanest match.

Compatibility	Chevy small block 1955-1980 (265-400 listed)
Part Number	134-4001
Stud/Nut/Washer Count	14 long, 4 medium, 16 short; 34 washers; 34 nuts
Warranty	12-month warranty

What We Found

This SBC cylinder head stud kit targets 1955-1980 Chevy small block applications spanning 265 through 400, with part number 134-4001 and a secondary reference of 2451-S. The kit contents are spelled out: 14 long studs, 4 medium studs, and 16 short studs, plus 34 washers and 34 12-point hex nuts.

That “counts by length” approach is genuinely helpful because it reduces the chance of mixing up stud lengths during installation. The listing also includes a high-quality material durability claim and comes with a 12-month warranty.

The main theme here is correct clamping architecture – supporting stable head clamping through thermal cycling and typical service intervals. It’s not a flow or horsepower part by itself.

Who It’s For

I’d use this for classic SBC owners who are converting to stud hardware or replacing stud setups in the 1955-1980 era. It’s listed across a range that includes 265, 267, 283, 302, 305, 307, 327, 350, 383, and 400 configurations.

Studs can be a good fit when you want consistent clamping behavior as the engine cycles through heat and vibration, especially with stronger spring setups. The inclusion of nuts and washers also helps keep the install process aligned.

If your application falls outside the stated window or uses a different factory configuration, you’ll want to cross-check stud length and spacing first.

Reference Number	134-3601
Application	SBC small block Chevy 350/383/400
Bolt Count	34 pieces
Bolt Length Breakdown	14 long, 4 medium, 16 short

What We Found

This 34-piece cylinder head bolts listing points to part number 134-3601 for SBC small block Chevy applications. It calls out suitability for aluminum or steel head scenarios and lists compatibility with 350, 383, and 400 engines in the excerpt.

The kit includes 14 long head bolts, 4 medium head bolts, and 16 short head bolts, which mirrors the kind of quantity breakdown you need to avoid short-count or misplacement issues.

What’s included in this excerpt focuses on the completeness and length distribution, while broader material grade and strength details aren’t shown here. The quantity and length breakdown, though, are still valuable because they reduce guesswork during install.

As with most hardware-only parts, performance changes come indirectly – through correct clamping force and torque consistency rather than any direct airflow or valvetrain improvement. The excerpt also includes generic “carefully selected” language around quality and reliability.

Who It’s For

This is the sort of kit I’d shortlist when you want a dependable, length-correct head bolt set for an SBC build without adding extra decision complexity.

It’s a good fit if the part number, your engine application, and the warranty or product details shown align with how your head bolt setup is supposed to be configured. I’d treat the fitment confirmation as the deciding step since the strength/material specifics aren’t fully visible in the excerpt.

Compatibility	Aftermarket small block Chevy
Drive Style	12-point nuts
Material	Chromoly
Finish	Black oxide

What We Found

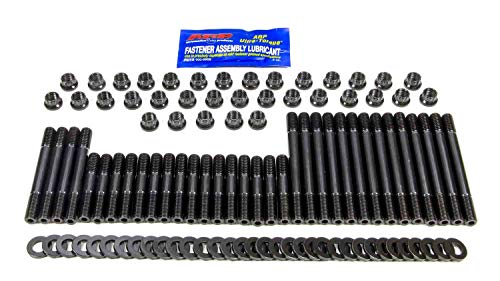

This SBC head stud kit is listed as 12pt (12-point) chromoly with a black oxide finish, aimed at aftermarket SBC head stud setups. The listing describes it as an OE replacement that matches factory specifications to restore original look and function.

It also includes “quality tested” and “easy fitment” language, emphasizing direct compatibility and minimal installation friction. The excerpt calls out secure, high-performance fit for daily use and high-stress driving conditions, but it doesn’t list the exact stud counts or stud lengths in the information shown here.

That missing detail matters because the wrong quantity or lengths can cause delays and mistakes during assembly. What’s clear is that the kit is centered on clamping stability and durability, plus service-friendly 12-point hardware access.

Who It’s For

I’d consider this for builders who want a stud-based clamping solution for an aftermarket SBC setup while keeping an OE-like approach to fitment. It’s especially relevant when you care about clamping stability through heat cycles and vibration, where stud setups are often chosen.

The black oxide finish can help with corrosion resistance around engine bay conditions, and the 12-point nuts should make torque work less prone to rounding. Before ordering, I’d verify your specific stud length and kit quantity requirements against your engine/head combination so you don’t end up missing pieces.

Engine	V8 5.3L
Material	Multi Layer Steel
Thickness	0.0614
OE References	12622325, 12657968, 26744PT

What We Found

A-Premium lists a 2-pack V8 5.3L left and right engine cylinder head gasket set compatible with multiple 2014-2024 Silverado 1500 variants, plus 2015-2024 Tahoe/Suburban models. It also states compatibility with matching GMC Sierra and Yukon models.

The listing includes OE reference numbers like 12622325, 12657968, and 26744PT, which makes it easier to confirm you’re selecting for the correct engine. It specifies the gasket construction as multi-layer steel and includes bore and thickness dimensions.

Importantly, it explicitly says “without gasket sealant” and “without head bolts,” so you know what’s included in the package versus what you’ll need separately.

As expected for a gasket part, it doesn’t add performance directly – it’s about preventing compression loss and helping stop coolant or oil leaks when it’s installed with correct torque and good surface prep. The listing also includes a one-year unlimited-mileage guarantee, which is a helpful risk-management detail for a sealing-critical component.

Who It’s For

I’d recommend this gasket set for late-model truck owners and DIY mechanics dealing with head sealing issues on compatible 5.3L V8 applications in the listed Chevrolet and GMC platforms. It’s the right move when you’re addressing symptoms like overheating, oil contamination, or signs of combustion leakage after head service.

The OE references and physical dimensions help you match the set to the correct engine. The two-pack format also fits typical repair practice because you’re replacing left and right together. If you’re doing classic swaps outside the stated 5.3L truck families, this is less likely to be the right option.

What to Look For Before Buying

When you’re shopping for factory-style big block Chevy head parts (or the hardware around them), compatibility is the first filter – not brand hype. For the hardware, I’d verify stud spacing, bolt/stud style, and whether you’re dealing with washer-required vs washer-less setups. For intake and airflow-related components, I’d match chamber/runner intent and the intake style to the RPM range you actually plan to drive. And for gaskets, the fastest route to confidence is using OE reference numbers and the listed thickness and bore dimensions.

Check Verify head and engine compatibility

Start by matching parts to the exact engine family, year range, and build direction. For heads and hardware, confirm plug style (for cylinder heads), stud spacing (for stud kits), and whether the listing expects bare heads vs fully assembled heads. For intake components, check port matching/sealing and confirm the intended gasket compatibility. If the listing gives OE or reference numbers, cross-check them before you hit buy.

Value Balance material quality with total repair cost

Think in “total repair cost,” not just the part price. Aluminum heads and intakes can help weight and packaging, but they still require the right supporting parts and correct machining. Hardware kits may look similar, yet stud lengths, washer requirements, and inclusion lists differ. Gaskets should have the right quantity in the box and clear exclusions (like whether sealant or bolts are included). If there’s warranty coverage shown, factor that in – sealing components are where uncertainty gets expensive.

Rating Use rating signals, but don’t ignore spec clarity

Use rating signals to spot patterns, but don’t let them replace spec clarity. When ratings aren’t shown, I lean harder on chamber/runner numbers, valve sizes, and the stated fitment window for your engine. For fasteners, proof-load/strength claims and coating notes can tell you how the kit is intended to be used. Clear inclusion lists also matter because “missing pieces” delays builds more than most people expect.

Verify Confirm installation requirements and inclusions

Check the installation expectations before you buy: does the item arrive ready for assembly, or is it a bare component that needs machining and your finishing work? For gaskets, confirm exclusions like “without sealant” or “without head bolts,” since those details change what you must purchase separately. Finally, don’t mix bolt and stud systems unless your combination is specifically designed for it – head hardware mismatches can cause real sealing and clamping problems.

Frequently Asked Questions

Do bare aluminum cylinder heads require additional machining and parts?

Bare aluminum cylinder heads usually require additional work – especially around sealing surfaces and guide/seat work – before they’re ready to run. You’ll also need to assemble the correct valvetrain components (springs, retainers, locks) to match your cam and intended compression goals, and you’ll still need the correct torque specs and installation procedure. If a listing doesn’t say “finish-ready,” assume machining/assembly steps are part of the plan.

What matters most when choosing head bolts versus head studs?

Head bolts and head studs are different clamping approaches. Stud kits are often chosen for stable clamping through heat cycles and repeated service, while bolt kits can be a simpler OE-style route for many rebuilds. Either way, you need to verify washer requirements (if any), correct stud spacing, and correct application fitment for your exact block/head combination.

How can runner volume and chamber volume affect performance?

Chamber volume is tied to how you’ll build compression and how the engine’s combustion characteristics will land. Runner volume affects airflow potential across different RPM ranges. The best move is to match chamber/runner intent with your piston selection, cam timing, and the RPM band you actually want your engine to live in.

Why do head gasket listings specify thickness and “without sealant”?

Thickness affects compression and sealing behavior, so the listed dimensions matter. When a listing says “without gasket sealant,” it’s clarifying that sealant isn’t included – or that you’ll need to obtain it separately based on your install procedure. Using sealant when it isn’t called for (or when a surface procedure differs) can sometimes create sealing problems, so I’d stick to the recommended install method.

Can an intake upgrade improve drivability on a street SBC build?

On a street SBC, a dual-plane intake can help preserve midrange torque while still improving airflow compared to some stock setups. Air-gap designs are intended to reduce heat soak, which can support more stable charge temperatures. Drivability depends heavily on your cam timing, carb choices, and ignition calibration – so matching the manifold’s intent to your RPM target is what makes it work.

🎯 Final Verdict

IMOOA’s aluminum angle-plug small block heads are the most spec-forward option here for planning a classic build, with a listed 64cc chamber and 205cc runner volume plus bronze valve guides and ductile iron seats. If the goal is a sealing-focused repair on a compatible late-model 5.3L truck, A-Premium’s 2-pack multi-layer steel head gaskets are the practical pick thanks to the OE reference numbers, listed bore/thickness dimensions, and a one-year unlimited-mileage guarantee. My suggestion is to choose the head/intake direction first (based on airflow and chamber/runner intent), then pair it with the correct hardware and follow the gasket procedure for your exact engine.
